• Our most advanced long range, water-resistant (IP67) beacon with motion sensor accelerometer.
• This beacon can achieve ranges of up to 100 meters.
• 4 year battery life (CR2477 included). The battery is easily replaceable after 4 years. (Based on 0dBm TX, 1000ms interval, and unconnectable setting).
• Real time battery level can be monitored using our KBeaconPro app or retrieved programmatically using a scan request method or broadcast as part of a TLM broadcast.
• Using its built-in motion sensor, this beacon can be configured to broadcast only after sensing motion. It can also be configured to broadcast normally but then to broadcast a slightly modified iBeacon UUID or different protocol after sensing motion.
• Broadcasts your choice of iBeacon, KSensor accelerometer data, Eddystone TLM, Eddystone URL, and/or Eddystone UID format. Eddystone TLM broadcasts battery strength, temperature, and broadcast count data. (This is NOT an Eddystone URL beacon for broadcasting your website or ad message to nearby phones. That service has been SHUTDOWN WORLDWIDE by Google as of Dec 6, 2018.)
• Free configuration apps for iPhone & Android allow you to adjust settings according to your needs.
• Transmit distance: 0.2-100 meters.
• Selectable TX levels: -40, -20, -16, -12, -8, -4, 0, +4
• Our website has very detailed step-by-step instructions with multiple screenshots under the Quick Start Guide menu.
• This beacon is compatible with all bluetooth-capable smartphones as well as with our BLE beacon scanning gateway (Item BCG04)

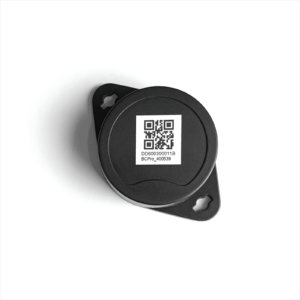

A brief introduction of the BC04P multi-beacon:

The BC05 is capable of broadcasting several different types of broadcasts. The most commonly used type is standard iBeacon.

The BC05 has five different “slots” for broadcasting (slots are numbered 0 through 4). Most users will only use one slot, but if you wanted to, you could technically broadcast up to 5 different UUID numbers all with different configurations. That gets complicated quickly, plus it uses lots of battery power, so let’s leave that aside for now.

The BC05 has a motion trigger. You can set this up to only broadcast after sensing motion (like an alarm), or you can configure the beacon to broadcast normally but then to modify the broadcast UUID for a period of time after sensing motion. Sort of like having one beacon broadcasting during normal times, then a “second” beacon broadcasting after sensing motion. You can also adjust the sensitivity of the motion trigger, and you can assign different motion triggers to different broadcast slots.

The BC05 has the typical adjustable broadcast power levels (called “TX” in beaconese), but it also has a super weak level of -40 and a strong level of +4, plus quite a few intermediate choices between these two extremes. You can use these if you want the range of the beacon to be very short or very long.

You can adjust the frequency of the beacon broadcasts that are sent out by the beacon (called “interval” in beaconese). More frequent broadcasts are easier for scanners/smartphones to “see”, but that also uses more battery power. The default is one broadcast every 1022.5 milliseconds, i.e. one broadcast every 1.0225 seconds.

The BC05 also has some other quite technical “pro” features such as telemetry broadcasting (XYZ motion) and some other fancy stuff.



Transmission: iBeacon, Eddystone URL, and/or Eddystone UID format. May be configured to broadcast battery strength.
BLE version: 5.0
Battery size: CR2477 (included)
Battery life: 48 months @ 1 second interval & 0dBm & unconnectable
Includes 3M double-back tape for affixing to a surface
Size: Body of the beacon is 40mm x 40mm x 15.7mm (1.57 x 1.57 x 0.62 inches).
Weight: 0.72 ounces including battery
Waterproofing: yes; IP67
Password: yes
Wide TX Power range: select from -40, -20, -16, -12, -8, -4, 0, +4
Interval: adjustable from 100-10,000 milliseconds including optimal precise numbers such as 1022.5ms
On/Off switch: yes (internal)
Motion Sensor: yes
Chip: nRF52833

Working Temperature: -40C ~+70C
Transmit distance: Transmit distance: 0.2-100 meters
Android app: yes
iOS app: yes

Feel free to contact us if you have any questions or would like to order in bulk (100-10,000 pieces)
